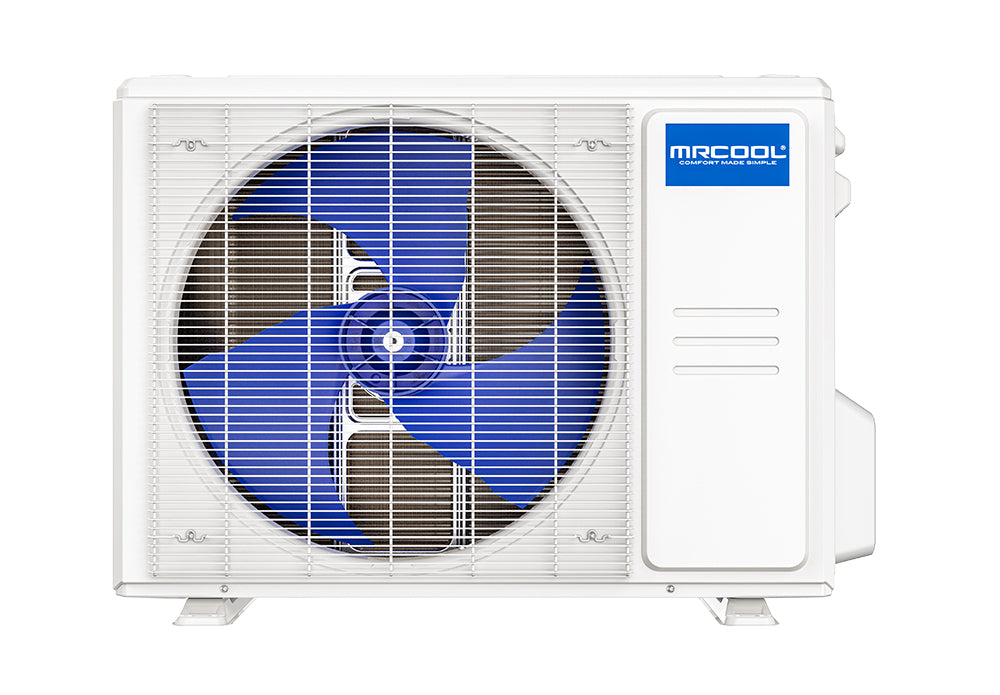

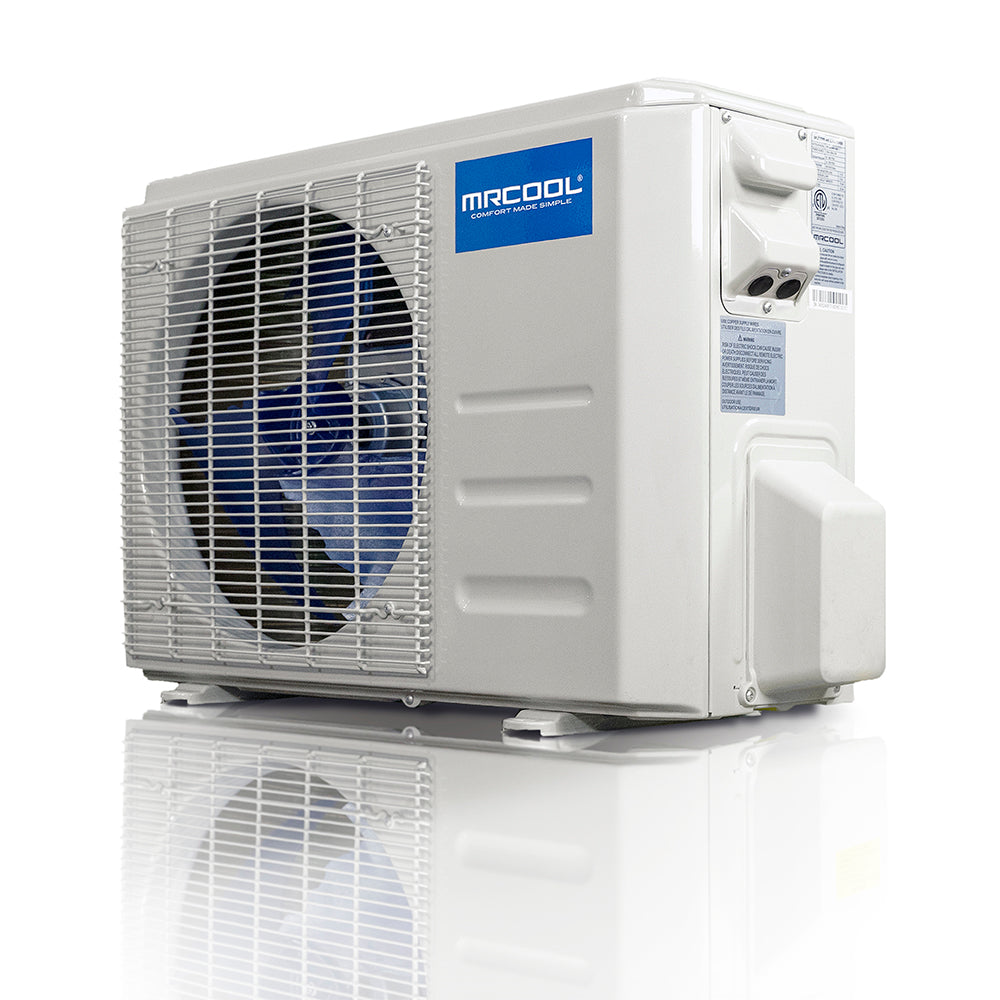

MRCOOL® Advantage 24k BTU 230V Condenser – 5th Generation

The MRCOOL® Advantage 24,000 BTU 230V Condenser – 5th Generation is a high-performance, energy-efficient mini-split solution designed for large rooms and open spaces up to 1,050 sq. ft. Whether you're upgrading your HVAC system or starting fresh, this unit delivers reliable heating and cooling year-round—without the need for ductwork.

This updated model uses R-454B refrigerant, a next-gen option with 80% lower Global Warming Potential (GWP) than R-410A. It’s better for the environment and helps you reduce your carbon footprint while improving energy performance. With efficiency ratings up to 18.7 SEER2 and 9.3 HSPF2-4, this system balances comfort and cost-effectiveness exceptionally well.

Integrated Wi-Fi control gives you the freedom to manage your home climate remotely using the MRCOOL® SmartHVAC app, or hands-free with Amazon Alexa or Google Assistant. Whether you're on the go or relaxing at home, comfort is always within reach.

Key Features

• Professional Installation Required – Designed for use with MRCOOL® Advantage 5th Gen Air Handlers (sold separately)

• 24,000 BTU Output – Ideal for large rooms or open-plan spaces up to 1,050 sq. ft.

• Eco-Friendly R-454B Refrigerant – Significantly reduces environmental impact and increases system efficiency

• Up to 18.7 SEER2 / 9.3 HSPF2-4 – Strong performance with energy savings all year long

• Gold Fin® Corrosion Protection – Resists damage from salt air and humidity, making it ideal for coastal environments

• Smart Control Built In – Wi-Fi module included for app and voice control via Alexa and Google Assistant

• Follow Me® Function – Tracks the temperature around the remote and adjusts airflow accordingly for targeted comfort

• Quiet Operation – Low noise design enhances home comfort without disruption

• Convenience Features – Includes timer mode, sleep mode, refrigerant leak detection, and auto-restart

• Certified Efficiency – AHRI Certified, NEEP ccASHP Listed, and CEE Tier 1 Compliant (Northeast)

Technical Specifications

• Cooling Capacity: 24,000 BTU

• Voltage: 230V

• Refrigerant: R-454B

• Efficiency Ratings: Up to 18.7 SEER2 / 9.3 HSPF2-4

• Coverage Area: Up to 1,050 sq. ft.

• Mounting Type: Outdoor (wall or ground mounted)

• Control Options: Remote, smartphone app, Alexa, Google Assistant

• Certifications: AHRI, NEEP ccASHP, CEE Tier 1 (North)

Warranty Coverage

• 1-Year Parts Warranty

• 2-Year Compressor Warranty

Built for efficient, powerful performance and backed by smart technology, the MRCOOL® Advantage 24k BTU 230V Condenser – 5th Generation gives you the comfort you deserve with the reliability you expect—perfect for large spaces and eco-conscious homeowners alike.
