MRCOOL  |  SKU: HCMP3036AFOA

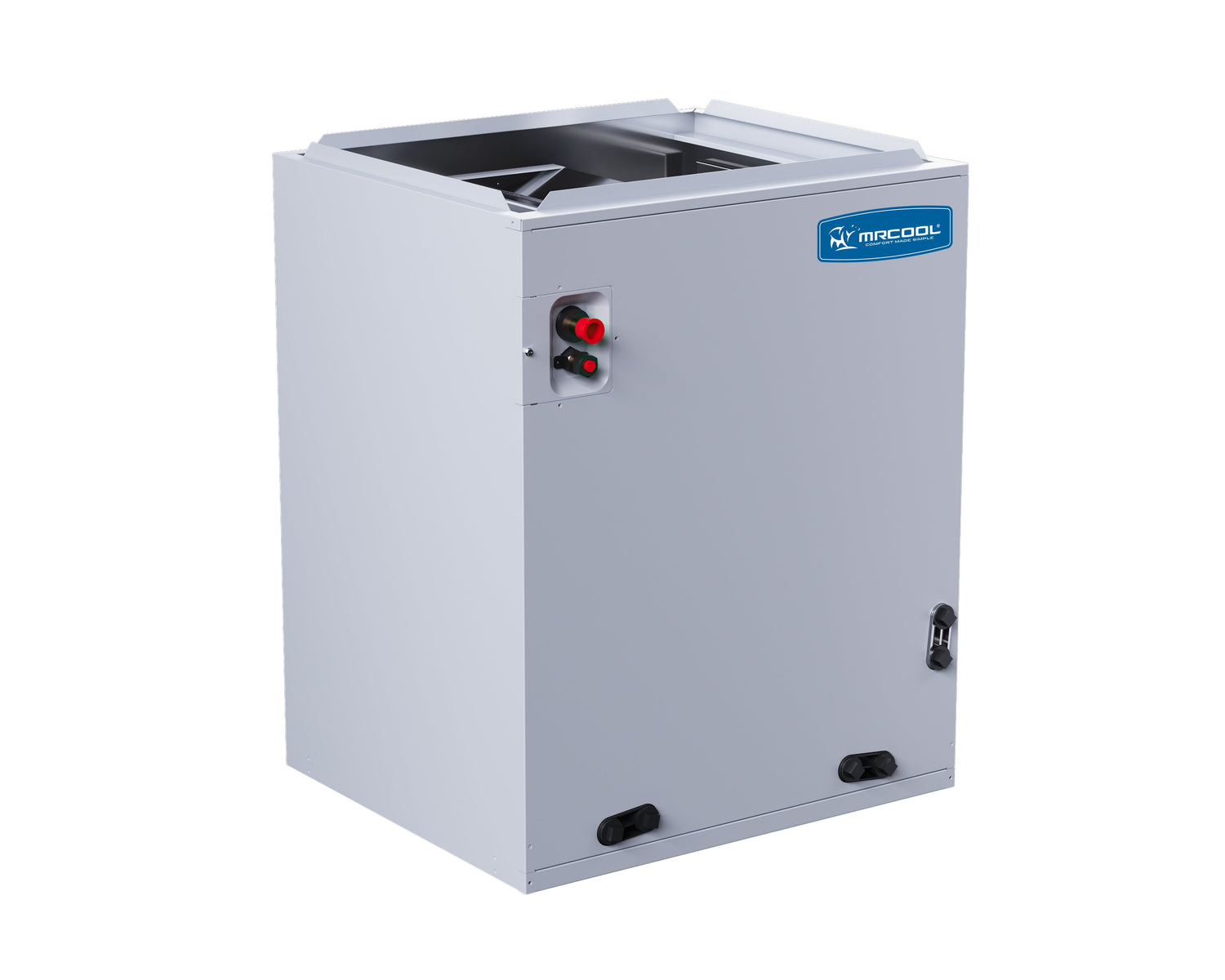

2.5-3 Ton 30,000-36,000 BTU 3rd Generation ProDirect Series A Coil - 14.5 in

$43200 $58000
Shipping calculated at checkout.


Care information

Care kits are available on our website! Grab yours now.

Delivery and Shipping

Delivery times may vary by location but our delivery shipping times are 3-7 days.

Selling fast! Grab yours now!

Specifications

<div style="overflow-x: auto;">
<table style="border-top: 1px solid; width: 100%; max-width: 100%;">
<tbody>
<tr>
<td style="padding:8px; vertical-align: top;"><strong>Product Name</strong></td>
<td style="padding:8px; vertical-align: top;">2.5–3 Ton 30–36k ProDirect 3rd Generation Series A Coil - 14.5 in</td>
</tr>
<tr>
<td style="padding:8px; vertical-align: top;"><strong>Cooling Capacity (BTU)</strong></td>
<td style="padding:8px; vertical-align: top;">30,000 / 36,000</td>
</tr>
<tr>
<td style="padding:8px; vertical-align: top;"><strong>Liquid Line Size</strong></td>
<td style="padding:8px; vertical-align: top;">3/8</td>
</tr>
<tr>
<td style="padding:8px; vertical-align: top;"><strong>Suction Line Size</strong></td>
<td style="padding:8px; vertical-align: top;">3/4</td>
</tr>
<tr>
<td style="padding:8px; vertical-align: top;"><strong>Base Warranty</strong></td>
<td style="padding:8px; vertical-align: top;">5 Years</td>
</tr>
<tr>
<td style="padding:8px; vertical-align: top;"><strong>Net Depth (in)</strong></td>
<td style="padding:8px; vertical-align: top;">21</td>
</tr>
<tr>
<td style="padding:8px; vertical-align: top;"><strong>Net Height (in)</strong></td>
<td style="padding:8px; vertical-align: top;">20</td>
</tr>
<tr>
<td style="padding:8px; vertical-align: top;"><strong>Net Width (in)</strong></td>
<td style="padding:8px; vertical-align: top;">14 1/2</td>
</tr>
<tr>
<td style="padding:8px; vertical-align: top;"><strong>Net Weight (lbs)</strong></td>
<td style="padding:8px; vertical-align: top;">46</td>
</tr>
</tbody>
</table>
</div>

Specifications

Product Name 2.5–3 Ton 30–36k ProDirect 3rd Generation Series A Coil - 14.5 in
Cooling Capacity (BTU) 30,000 / 36,000
Liquid Line Size 3/8
Suction Line Size 3/4
Base Warranty 5 Years
Net Depth (in) 21
Net Height (in) 20
Net Width (in) 14 1/2
Net Weight (lbs) 46

Description

The PRODIRECT™ Series A Coil is designed to improve the performance and reliability of your HVAC system. Compatible with R410A and R22 refrigerants, it integrates seamlessly into PRODIRECT™ systems. The coil features high-quality heat exchanger with aluminum fins and internally grooved copper tubing, assuring effective heat transfer and dependable operation. Its cabinet is thermally insulated and lined with foil-faced material to minimize condensation and support overall system efficiency. The multi-positional installation provides flexibility for various installations, and dual drain pans make routine maintenance more convenient. With a 13-inch supply duct, the coil is adaptable to different HVAC configurations. Measuring 20 inches in height and 14-1/2 inches in width, the PRODIRECT™ Series A Coil is compact yet versatile. It includes a 3/8-inch liquid line and a 3/4-inch suction line, ensuring compatibility with standard HVAC systems. UL certification guarantees the coil meets rigorous safety and quality standards. For added assurance, the coil is backed by a standard 5-year warranty plus an additional 5-year extended warranty when installed with an approved MRCOOL® Condenser. Whether upgrading an existing system or installing a new one, the PRODIRECT™ Series A Coil is a reliable solution to help keep your HVAC system running efficiently and effectively.

Feature list:

  • Multiposition installation
  • Evaporator Coil Tube Material: Aluminum
  • Evaporator Coil Tube Size(in.): 9/32
  • Supply Duct(in.): 13
