MRCOOL  |  SKU: MVP-36-HP-MUAH-230A00-O

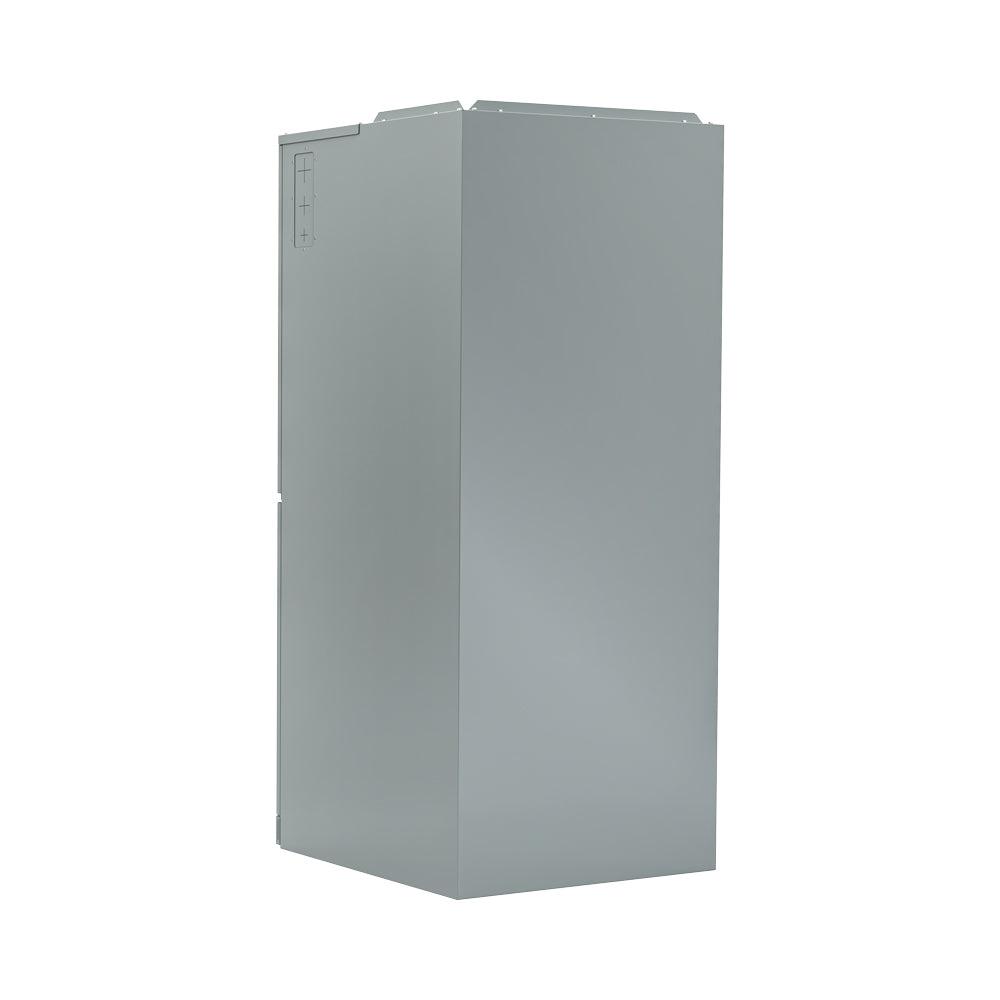

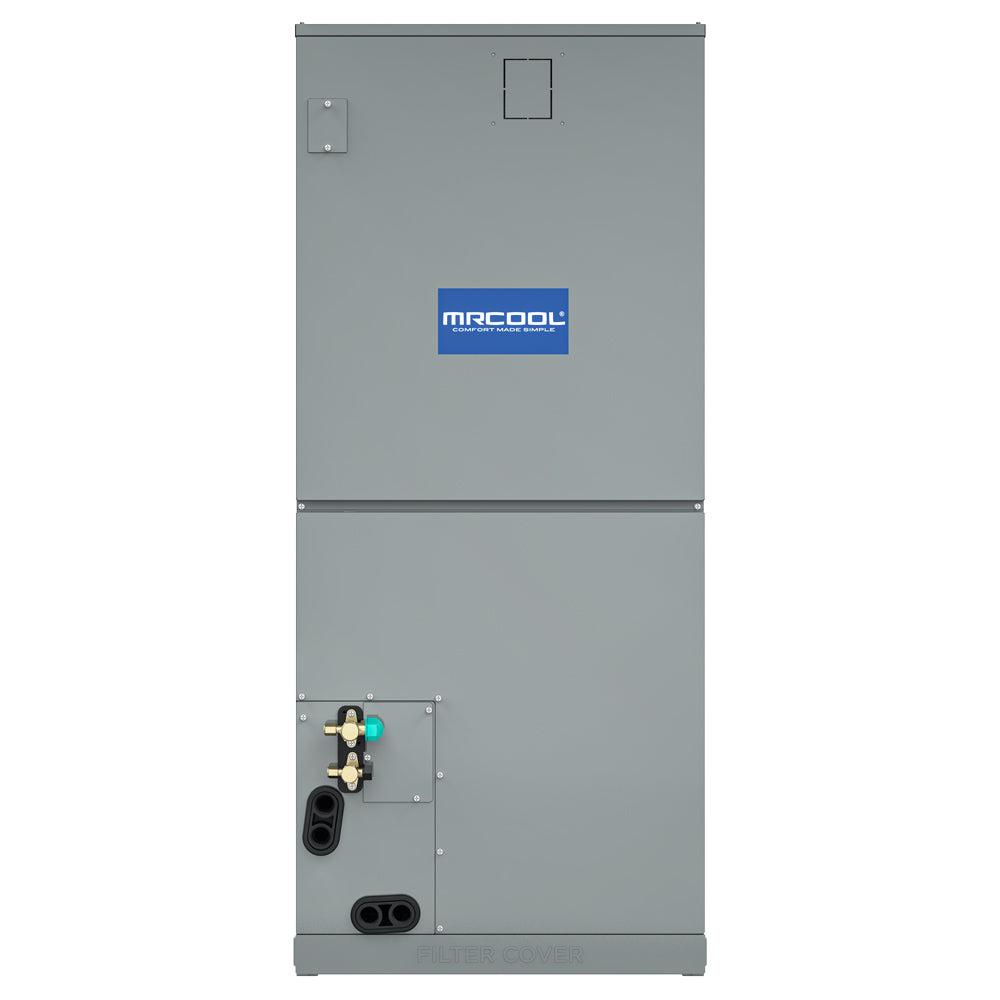

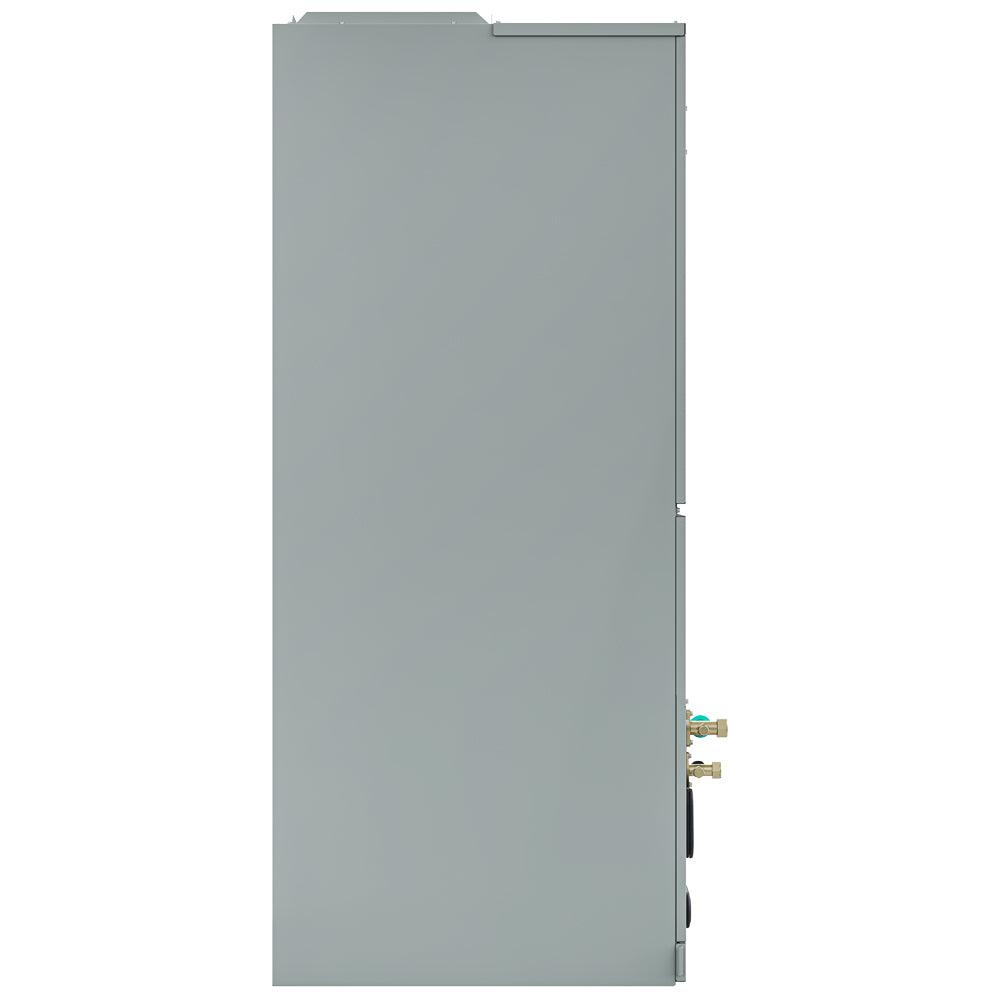

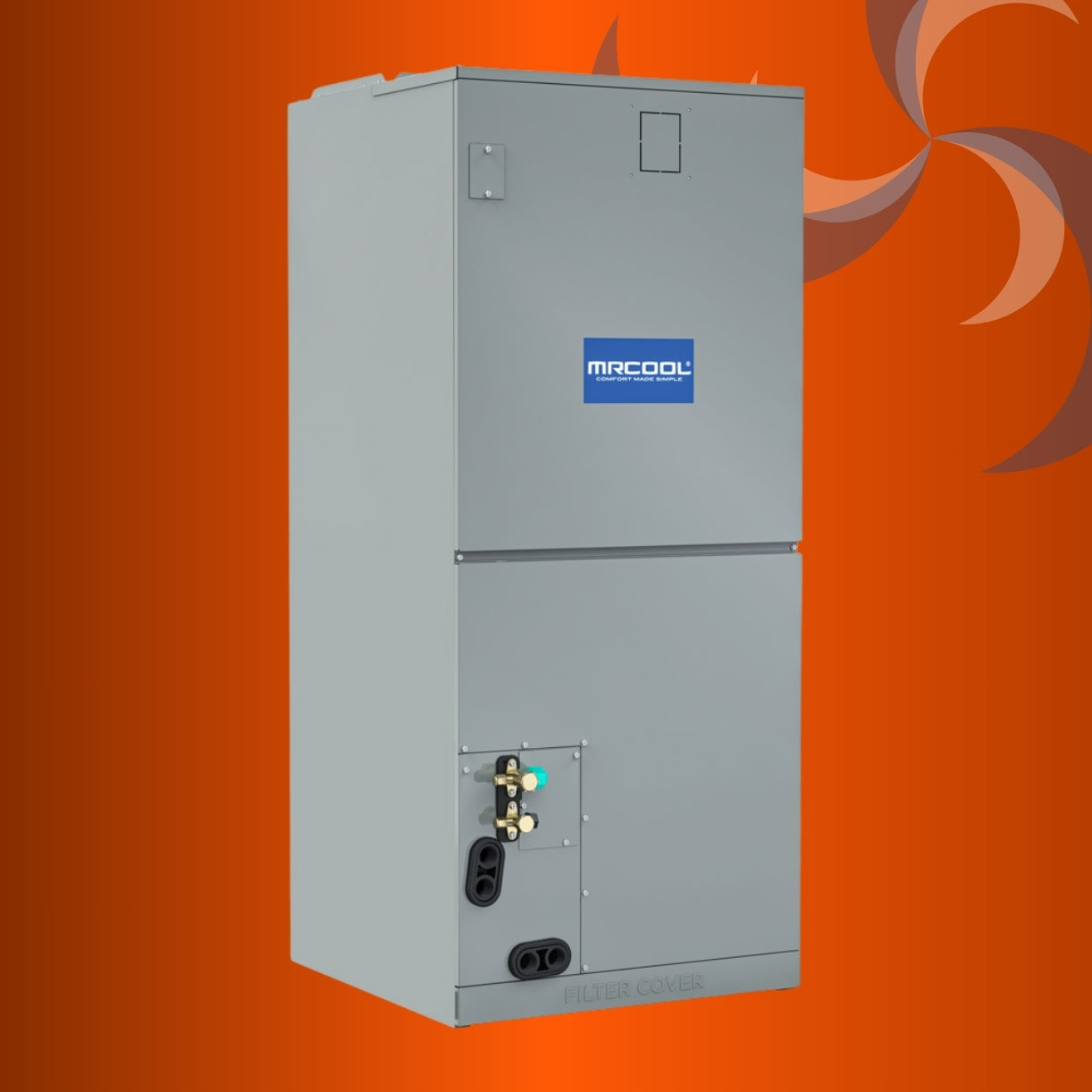

3 Ton/36k BTU MRCOOL® VersaPro® 2nd Generation Central Ducted Air Handler

$1,44500 $1,65000
Shipping calculated at checkout.


Care information

Care kits are available on our website! Grab yours now.

Delivery and Shipping

Delivery times may vary by location but our delivery shipping times are 3-7 days.

Selling fast! Grab yours now!

Specifications

<table style="border-top: 1px solid; width:100%; border-collapse: collapse;">
<tbody>
<!-- Product Title -->
<tr>
<td colspan="2" style="text-align: center; font-weight: bold; padding: 8px;">
3 Ton MRCOOL® VersaPro® 2nd Generation Central Ducted Air Handler
</td>
</tr>
<!-- Air Flow & Capacity -->
<tr>
<td style="padding: 8px; vertical-align: top;"><strong>CFM</strong></td>
<td style="padding: 8px; vertical-align: top;">1188.97/1083.02/971.19/865.24</td>
</tr>
<tr>
<td style="padding: 8px; vertical-align: top;"><strong>TONNAGE</strong></td>
<td style="padding: 8px; vertical-align: top;">3</td>
</tr>
<tr>
<td style="padding: 8px; vertical-align: top;"><strong>COOLING CAPACITY (BTU)</strong></td>
<td style="padding: 8px; vertical-align: top;">36000</td>
</tr>
<tr>
<td style="padding: 8px; vertical-align: top;"><strong>HEATING CAPACITY (BTU)</strong></td>
<td style="padding: 8px; vertical-align: top;">36000</td>
</tr>
<!-- Electrical Specifications -->
<tr>
<td style="padding: 8px; vertical-align: top;"><strong>VOLTAGE (V)</strong></td>
<td style="padding: 8px; vertical-align: top;">115/208-230</td>
</tr>
<tr>
<td style="padding: 8px; vertical-align: top;"><strong>PHASE</strong></td>
<td style="padding: 8px; vertical-align: top;">1</td>
</tr>
<tr>
<td style="padding: 8px; vertical-align: top;"><strong>CYCLE</strong></td>
<td style="padding: 8px; vertical-align: top;">60</td>
</tr>
<tr>
<td style="padding: 8px; vertical-align: top;"><strong>MAX FUSE BREAKER (A)</strong></td>
<td style="padding: 8px; vertical-align: top;">15</td>
</tr>
<tr>
<td style="padding: 8px; vertical-align: top;"><strong>MIN CIRCUIT AMPACITY (A)</strong></td>
<td style="padding: 8px; vertical-align: top;">8.0/6.0</td>
</tr>
<!-- Physical & Acoustic -->
<tr>
<td style="padding: 8px; vertical-align: top;"><strong>COLOR</strong></td>
<td style="padding: 8px; vertical-align: top;">gray</td>
</tr>
<tr>
<td style="padding: 8px; vertical-align: top;"><strong>DECIBEL RATING LOW (DBA)</strong></td>
<td style="padding: 8px; vertical-align: top;">28</td>
</tr>
<tr>
<td style="padding: 8px; vertical-align: top;"><strong>DECIBEL RATING HIGH (DBA)</strong></td>
<td style="padding: 8px; vertical-align: top;">48</td>
</tr>
<tr>
<td style="padding: 8px; vertical-align: top;"><strong>NUMBER OF SPEEDS</strong></td>
<td style="padding: 8px; vertical-align: top;">3</td>
</tr>
<!-- Line Set & Connection -->
<tr>
<td style="padding: 8px; vertical-align: top;"><strong>MAX LINESET LENGTH (FT)</strong></td>
<td style="padding: 8px; vertical-align: top;">246 ft</td>
</tr>
<tr>
<td style="padding: 8px; vertical-align: top;"><strong>LIQUID LINE SIZE</strong></td>
<td style="padding: 8px; vertical-align: top;">3/8</td>
</tr>
<tr>
<td style="padding: 8px; vertical-align: top;"><strong>SUCTION LINE SIZE</strong></td>
<td style="padding: 8px; vertical-align: top;">3/4</td>
</tr>
<!-- Filter & Heater Options -->
<tr>
<td style="padding: 8px; vertical-align: top;"><strong>FILTER TYPE</strong></td>
<td style="padding: 8px; vertical-align: top;">Replaceable</td>
</tr>
<tr>
<td style="padding: 8px; vertical-align: top;"><strong>FILTER SIZE</strong></td>
<td style="padding: 8px; vertical-align: top;">19x20x1</td>
</tr>
<tr>
<td style="padding: 8px; vertical-align: top;"><strong>AUXILIARY HEATER INCLUDED</strong></td>
<td style="padding: 8px; vertical-align: top;">No</td>
</tr>
<tr>
<td style="padding: 8px; vertical-align: top;"><strong>AUXILIARY HEATER AVAILABLE</strong></td>
<td style="padding: 8px; vertical-align: top;">Yes</td>
</tr>
<tr>
<td style="padding: 8px; vertical-align: top;"><strong>AUXILIARY HEATER SIZES</strong></td>
<td style="padding: 8px; vertical-align: top;">5kW/8kW/10kW/15kW/20kW</td>
</tr>
<tr>
<td style="padding: 8px; vertical-align: top;"><strong>ADJUSTABLE THERMOSTAT</strong></td>
<td style="padding: 8px; vertical-align: top;">Yes</td>
</tr>
<!-- Connectivity & Certifications -->
<tr>
<td style="padding: 8px; vertical-align: top;"><strong>WIFI COMPATIBILITY</strong></td>
<td style="padding: 8px; vertical-align: top;">Yes</td>
</tr>
<tr>
<td style="padding: 8px; vertical-align: top;"><strong>APP COMPATIBILITY</strong></td>
<td style="padding: 8px; vertical-align: top;">Yes</td>
</tr>
<tr>
<td style="padding: 8px; vertical-align: top;"><strong>ETL CERTIFIED</strong></td>
<td style="padding: 8px; vertical-align: top;">Yes</td>
</tr>
<tr>
<td style="padding: 8px; vertical-align: top;"><strong>ENERGY STAR CERTIFIED</strong></td>
<td style="padding: 8px; vertical-align: top;">Yes</td>
</tr>
<tr>
<td style="padding: 8px; vertical-align: top;"><strong>AHRI CERTIFIED</strong></td>
<td style="padding: 8px; vertical-align: top;">Yes</td>
</tr>
<!-- Warranty & Additional Information -->
<tr>
<td style="padding: 8px; vertical-align: top;"><strong>BASE PARTS WARRANTY</strong></td>
<td style="padding: 8px; vertical-align: top;">10 Years</td>
</tr>
<tr>
<td style="padding: 8px; vertical-align: top;"><strong>BASE COMPRESSOR WARRANTY</strong></td>
<td style="padding: 8px; vertical-align: top;">10 Years</td>
</tr>
<tr>
<td style="padding: 8px; vertical-align: top;"><strong>CONTAINS ELECTRONICS</strong></td>
<td style="padding: 8px; vertical-align: top;">Yes</td>
</tr>
<tr>
<td style="padding: 8px; vertical-align: top;"><strong>CONTAINS CHEMICALS</strong></td>
<td style="padding: 8px; vertical-align: top;">Yes</td>
</tr>
<tr>
<td style="padding: 8px; vertical-align: top;"><strong>CONTAINS COMPRESSED GAS</strong></td>
<td style="padding: 8px; vertical-align: top;">Yes</td>
</tr>
<!-- Dimensions & Weights -->
<tr>
<td style="padding: 8px; vertical-align: top;"><strong>NET DEPTH (IN)</strong></td>
<td style="padding: 8px; vertical-align: top;">21.02</td>
</tr>
<tr>
<td style="padding: 8px; vertical-align: top;"><strong>NET HEIGHT (IN)</strong></td>
<td style="padding: 8px; vertical-align: top;">49.02</td>
</tr>
<tr>
<td style="padding: 8px; vertical-align: top;"><strong>NET WIDTH (IN)</strong></td>
<td style="padding: 8px; vertical-align: top;">21.02</td>
</tr>
<tr>
<td style="padding: 8px; vertical-align: top;"><strong>NET WEIGHT (LBS)</strong></td>
<td style="padding: 8px; vertical-align: top;">129.41</td>
</tr>
<tr>
<td style="padding: 8px; vertical-align: top;"><strong>GROSS DEPTH (IN)</strong></td>
<td style="padding: 8px; vertical-align: top;">24.41</td>
</tr>
<tr>
<td style="padding: 8px; vertical-align: top;"><strong>GROSS HEIGHT (IN)</strong></td>
<td style="padding: 8px; vertical-align: top;">52.56</td>
</tr>
<tr>
<td style="padding: 8px; vertical-align: top;"><strong>GROSS WIDTH (IN)</strong></td>
<td style="padding: 8px; vertical-align: top;">26.57</td>
</tr>
<tr>
<td style="padding: 8px; vertical-align: top;"><strong>GROSS WEIGHT (LBS)</strong></td>
<td style="padding: 8px; vertical-align: top;">153.88</td>
</tr>
</tbody>
</table>

Specifications

3 Ton MRCOOL® VersaPro® 2nd Generation Central Ducted Air Handler
CFM 1188.97/1083.02/971.19/865.24
TONNAGE 3
COOLING CAPACITY (BTU) 36000
HEATING CAPACITY (BTU) 36000
VOLTAGE (V) 115/208-230
PHASE 1
CYCLE 60
MAX FUSE BREAKER (A) 15
MIN CIRCUIT AMPACITY (A) 8.0/6.0
COLOR gray
DECIBEL RATING LOW (DBA) 28
DECIBEL RATING HIGH (DBA) 48
NUMBER OF SPEEDS 3
MAX LINESET LENGTH (FT) 246 ft
LIQUID LINE SIZE 3/8
SUCTION LINE SIZE 3/4
FILTER TYPE Replaceable
FILTER SIZE 19x20x1
AUXILIARY HEATER INCLUDED No
AUXILIARY HEATER AVAILABLE Yes
AUXILIARY HEATER SIZES 5kW/8kW/10kW/15kW/20kW
ADJUSTABLE THERMOSTAT Yes
WIFI COMPATIBILITY Yes
APP COMPATIBILITY Yes
ETL CERTIFIED Yes
ENERGY STAR CERTIFIED Yes
AHRI CERTIFIED Yes
BASE PARTS WARRANTY 10 Years
BASE COMPRESSOR WARRANTY 10 Years
CONTAINS ELECTRONICS Yes
CONTAINS CHEMICALS Yes
CONTAINS COMPRESSED GAS Yes
NET DEPTH (IN) 21.02
NET HEIGHT (IN) 49.02
NET WIDTH (IN) 21.02
NET WEIGHT (LBS) 129.41
GROSS DEPTH (IN) 24.41
GROSS HEIGHT (IN) 52.56
GROSS WIDTH (IN) 26.57
GROSS WEIGHT (LBS) 153.88

Description

The 3 Ton MRCOOL® VersaPro® Central Ducted Air Handler offers a reliable and efficient solution for heating and cooling your home throughout the year. With a SEER2 rating of up to 17.4, it is designed to cover up to 1,500 square feet, making it an ideal upgrade for older HVAC systems that need improved efficiency. Built for long-term durability, this air handler features a robust painted galvanized steel exterior that withstands everyday wear. Its self-diagnostics panel simplifies maintenance by quickly identifying any issues, minimizing downtime. This unit is designed for flexible installation, offering options for upflow, downflow, and horizontal left or right configurations to suit various home layouts. It uses eco-friendly R-454B refrigerant to help reduce its environmental impact, and an optional heat kit is available for added functionality. The included MRCOOL® Smart Thermostat provides easy and precise temperature control for your home, making it simple to set and adjust the temperature to your preferred comfort level. It’s also compatible with the MRCOOL® SmartHVAC app for convenient remote access. Compatible with our Central Ducted Hyper Heat system, this air handler ensures top-tier performance and comfort. Backed by a 10-year warranty, the 3 Ton MRCOOL® VersaPro® Central Ducted Air Handler offers a combination of performance, reliability, and convenience, providing a long-lasting and efficient solution for your home’s climate control.
