MRCOOL  |  SKU: HAH036FPA

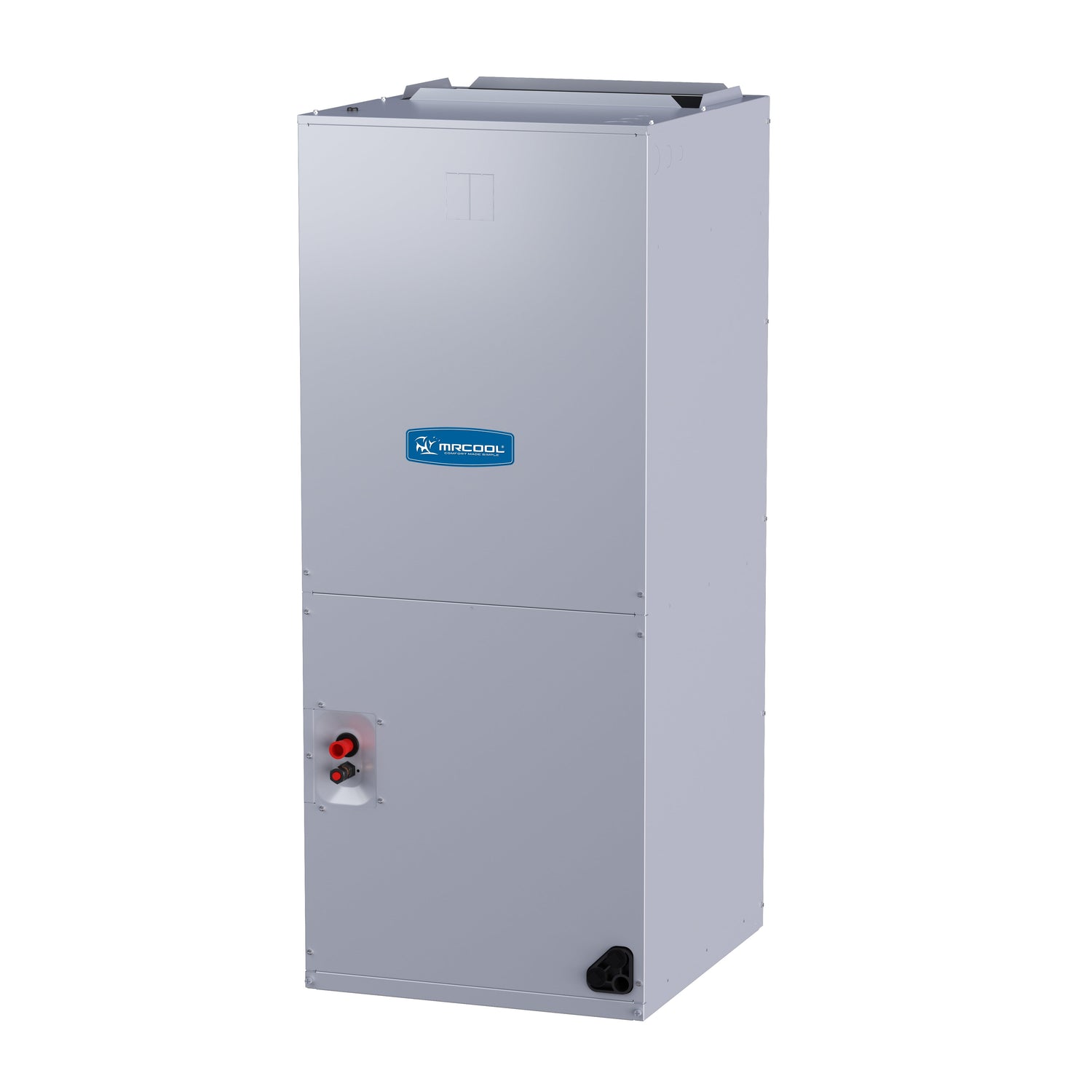

3 Ton 36,000 BTU 3rd Generation ProDirect Series PSC Air Handler

$81700 $97000
Shipping calculated at checkout.


Care information

Care kits are available on our website! Grab yours now.

Delivery and Shipping

Delivery times may vary by location but our delivery shipping times are 3-7 days.

Selling fast! Grab yours now!

Specifications

<div style="overflow-x: auto;">
<table style="border-top: 1px solid; width: 100%; max-width: 100%;">
<tbody>
<tr>
<td style="padding:8px; vertical-align: top;"><strong>Product Name</strong></td>
<td style="padding:8px; vertical-align: top;">3 Ton 36,000 BTU 3rd Generation ProDirect Series PSC Air Handler</td>
</tr>
<tr>
<td style="padding:8px; vertical-align: top;"><strong>Cooling Capacity (BTU)</strong></td>
<td style="padding:8px; vertical-align: top;">36,000</td>
</tr>
<tr>
<td style="padding:8px; vertical-align: top;"><strong>Voltage (V)</strong></td>
<td style="padding:8px; vertical-align: top;">208/230</td>
</tr>
<tr>
<td style="padding:8px; vertical-align: top;"><strong>Phase</strong></td>
<td style="padding:8px; vertical-align: top;">1</td>
</tr>
<tr>
<td style="padding:8px; vertical-align: top;"><strong>Cycle</strong></td>
<td style="padding:8px; vertical-align: top;">60</td>
</tr>
<tr>
<td style="padding:8px; vertical-align: top;"><strong>Max Fuse Breaker (A)</strong></td>
<td style="padding:8px; vertical-align: top;">15</td>
</tr>
<tr>
<td style="padding:8px; vertical-align: top;"><strong>Min Circuit Ampacity (A)</strong></td>
<td style="padding:8px; vertical-align: top;">3.3</td>
</tr>
<tr>
<td style="padding:8px; vertical-align: top;"><strong>Full Load (A)</strong></td>
<td style="padding:8px; vertical-align: top;">2.6</td>
</tr>
<tr>
<td style="padding:8px; vertical-align: top;"><strong>Color</strong></td>
<td style="padding:8px; vertical-align: top;">Silver</td>
</tr>
<tr>
<td style="padding:8px; vertical-align: top;"><strong>Refrigerant Type</strong></td>
<td style="padding:8px; vertical-align: top;">R410a</td>
</tr>
<tr>
<td style="padding:8px; vertical-align: top;"><strong>Liquid Line Size</strong></td>
<td style="padding:8px; vertical-align: top;">3/8</td>
</tr>
<tr>
<td style="padding:8px; vertical-align: top;"><strong>Suction Line Size</strong></td>
<td style="padding:8px; vertical-align: top;">3/4</td>
</tr>
<tr>
<td style="padding:8px; vertical-align: top;"><strong>Blower Motor Type</strong></td>
<td style="padding:8px; vertical-align: top;">PSC</td>
</tr>
<tr>
<td style="padding:8px; vertical-align: top;"><strong>Blower Motor HP</strong></td>
<td style="padding:8px; vertical-align: top;">1/2</td>
</tr>
<tr>
<td style="padding:8px; vertical-align: top;"><strong>Blower Motor RPM</strong></td>
<td style="padding:8px; vertical-align: top;">856</td>
</tr>
<tr>
<td style="padding:8px; vertical-align: top;"><strong>Auxiliary Heater Included</strong></td>
<td style="padding:8px; vertical-align: top;">No</td>
</tr>
<tr>
<td style="padding:8px; vertical-align: top;"><strong>Auxiliary Heater Available</strong></td>
<td style="padding:8px; vertical-align: top;">Yes</td>
</tr>
<tr>
<td style="padding:8px; vertical-align: top;"><strong>Auxiliary Heater Sizes (kW)</strong></td>
<td style="padding:8px; vertical-align: top;">5, 7.5, 10, 15, 20</td>
</tr>
<tr>
<td style="padding:8px; vertical-align: top;"><strong>Net Depth (in)</strong></td>
<td style="padding:8px; vertical-align: top;">21 5/8</td>
</tr>
<tr>
<td style="padding:8px; vertical-align: top;"><strong

Specifications

Product Name 3 Ton 36,000 BTU 3rd Generation ProDirect Series PSC Air Handler
Cooling Capacity (BTU) 36,000
Voltage (V) 208/230
Phase 1
Cycle 60
Max Fuse Breaker (A) 15
Min Circuit Ampacity (A) 3.3
Full Load (A) 2.6
Color Silver
Refrigerant Type R410a
Liquid Line Size 3/8
Suction Line Size 3/4
Blower Motor Type PSC
Blower Motor HP 1/2
Blower Motor RPM 856
Auxiliary Heater Included No
Auxiliary Heater Available Yes
Auxiliary Heater Sizes (kW) 5, 7.5, 10, 15, 20
Net Depth (in) 21 5/8

Description

***DOES NOT COME WITH LINE SET OR CONDENSER***

This product is only the Air handler.

The 3 Ton PRODIRECT™ Series PSC Air Handler offers exceptional reliability and efficiency for your home’s HVAC needs. Designed for smooth compatibility with both cooling and heat pump systems, it adapts easily to various home configurations. With a SEER2 rating of 15.2, this model ensures strong energy efficiency. Constructed with all-aluminum tubes and fins, the air handler is built for durability and corrosion resistance, supporting long-lasting performance. The 36K PRODIRECT™ Air Handler features a factory-sealed cabinet that minimizes air leakage to 2% or less at 1.0 inch water column pressure, enhancing energy efficiency. Its versatile design allows for multi-positional installation, easily accommodating different setups. Both horizontal and vertical condensate drain pans are included, simplifying installation in various spaces. Maintenance is hassle-free due to the slide-out blower and coil components. You can customize the heating capacity with optional heat kits ranging from 5 to 20 kW, giving you greater control over your comfort levels. This unit meets high industry standards, holding both AHRI certification and ETL-listed to ensure quality and reliability. Backed by MRCOOL®’s standard 5-year warranty plus an additional 5-year extended parts and compressor warranty upon registration., the 3 Ton PRODIRECT™ Series PSC Air Handler is an excellent choice for year-round home comfort.

Feature List:

  • Multiposition installation
  • Blower and coil easy slide out for ease of maintenance
  • Evaporator Coil Tube Material: Aluminum
  • Evaporator Coil Tube Size(in.): 9/32
  • AHRI Listed & ETL Certified.
