MRCOOL  |  SKU: HAH060FEA

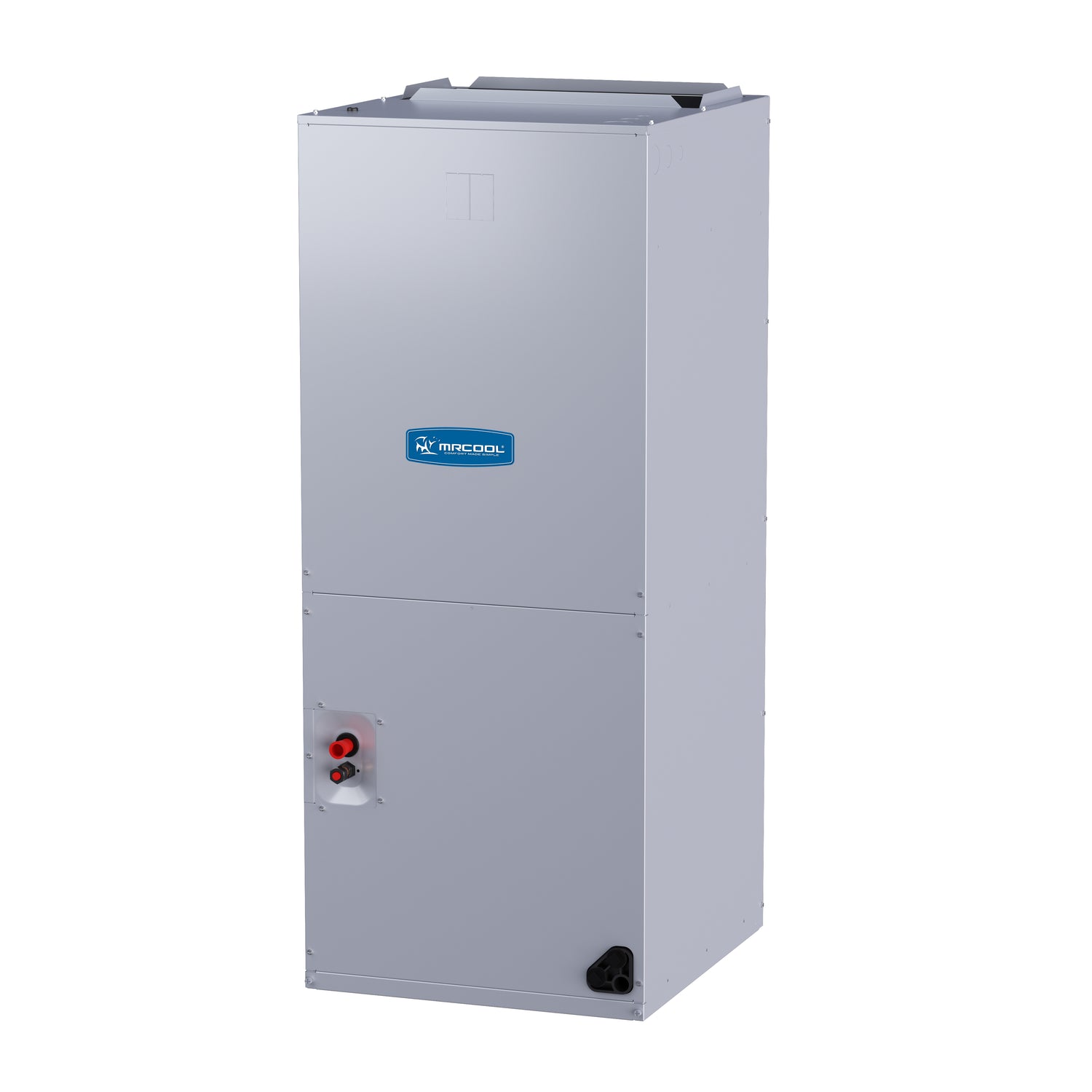

5 Ton 60,000 BTU 3rd Generation ProDirect Series ECM Air Handler

$1,40700 $1,56000
Shipping calculated at checkout.


Care information

Care kits are available on our website! Grab yours now.

Delivery and Shipping

Delivery times may vary by location but our delivery shipping times are 3-7 days.

Selling fast! Grab yours now!

Specifications

<div style="overflow-x: auto;">
<table style="border-top: 1px solid; width: 100%; max-width: 100%;">
<tbody>
<tr>
<td style="padding:8px; vertical-align: top;"><strong>Product Name</strong></td>
<td style="padding:8px; vertical-align: top;">5 Ton 60,000 BTU 3rd Generation ProDirect Series ECM Air Handler</td>
</tr>
<tr>
<td style="padding:8px; vertical-align: top;"><strong>Cooling Capacity (BTU)</strong></td>
<td style="padding:8px; vertical-align: top;">60,000</td>
</tr>
<tr>
<td style="padding:8px; vertical-align: top;"><strong>Voltage (V)</strong></td>
<td style="padding:8px; vertical-align: top;">208/230</td>
</tr>
<tr>
<td style="padding:8px; vertical-align: top;"><strong>Phase</strong></td>
<td style="padding:8px; vertical-align: top;">1</td>
</tr>
<tr>
<td style="padding:8px; vertical-align: top;"><strong>Cycle</strong></td>
<td style="padding:8px; vertical-align: top;">60</td>
</tr>
<tr>
<td style="padding:8px; vertical-align: top;"><strong>Max Fuse Breaker (A)</strong></td>
<td style="padding:8px; vertical-align: top;">15</td>
</tr>
<tr>
<td style="padding:8px; vertical-align: top;"><strong>Min Circuit Ampacity (A)</strong></td>
<td style="padding:8px; vertical-align: top;">5.7</td>
</tr>
<tr>
<td style="padding:8px; vertical-align: top;"><strong>Color</strong></td>
<td style="padding:8px; vertical-align: top;">Silver</td>
</tr>
<tr>
<td style="padding:8px; vertical-align: top;"><strong>Refrigerant Type</strong></td>
<td style="padding:8px; vertical-align: top;">R410a</td>
</tr>
<tr>
<td style="padding:8px; vertical-align: top;"><strong>Liquid Line Size</strong></td>
<td style="padding:8px; vertical-align: top;">3/8</td>
</tr>
<tr>
<td style="padding:8px; vertical-align: top;"><strong>Suction Line Size</strong></td>
<td style="padding:8px; vertical-align: top;">3/4</td>
</tr>
<tr>
<td style="padding:8px; vertical-align: top;"><strong>Blower Motor Type</strong></td>
<td style="padding:8px; vertical-align: top;">ECM</td>
</tr>
<tr>
<td style="padding:8px; vertical-align: top;"><strong>Blower Motor HP</strong></td>
<td style="padding:8px; vertical-align: top;">3/4</td>
</tr>
<tr>
<td style="padding:8px; vertical-align: top;"><strong>Blower Motor RPM</strong></td>
<td style="padding:8px; vertical-align: top;">1050</td>
</tr>
<tr>
<td style="padding:8px; vertical-align: top;"><strong>Auxiliary Heater Included</strong></td>
<td style="padding:8px; vertical-align: top;">No</td>
</tr>
<tr>
<td style="padding:8px; vertical-align: top;"><strong>Auxiliary Heater Available</strong></td>
<td style="padding:8px; vertical-align: top;">Yes</td>
</tr>
<tr>
<td style="padding:8px; vertical-align: top;"><strong>Auxiliary Heater Sizes (kW)</strong></td>
<td style="padding:8px; vertical-align: top;">5, 7.5, 10, 15, 20</td>
</tr>
<tr>
<td style="padding:8px; vertical-align: top;"><strong>Net Depth (in)</strong></td>
<td style="padding:8px; vertical-align: top;">24</td>
</tr>
<tr>
<td style="padding:8px; vertical-align: top;"><strong>Net Height (in)</strong></td>
<td style="padding:8px; vertical-align: top;">54 1/2</td>
</tr>
<tr>
<td style="padding:8px; vertical-align: top;"><strong>Net Width (in)</strong></td>
<td style="padding:8px; vertical-align: top;">22</td>
</tr>
<tr>
<td style="padding:8px; vertical-align: top;"><strong>Net Weight (lbs)</strong></td>
<td style="padding:8px; vertical-align: top;">159</td>
</tr>
</tbody>
</table>
</div>

Specifications

Product Name 5 Ton 60,000 BTU 3rd Generation ProDirect Series ECM Air Handler
Cooling Capacity (BTU) 60,000
Voltage (V) 208/230
Phase 1
Cycle 60
Max Fuse Breaker (A) 15
Min Circuit Ampacity (A) 5.7
Color Silver
Refrigerant Type R410a
Liquid Line Size 3/8
Suction Line Size 3/4
Blower Motor Type ECM
Blower Motor HP 3/4
Blower Motor RPM 1050
Auxiliary Heater Included No
Auxiliary Heater Available Yes
Auxiliary Heater Sizes (kW) 5, 7.5, 10, 15, 20
Net Depth (in) 24
Net Height (in) 54 1/2
Net Width (in) 22
Net Weight (lbs) 159

Description

***DOES NOT COME WITH LINE SET OR CONDENSER***

This product is only the Air handler.

The 5 Ton PRODIRECT™ Series ECM Air Handler is the ultimate solution for elevating your home’s HVAC system. Engineered to excel in both cooling systems and heat pump applications, this air handler offers flexible configurations tailored to your specific needs. Equipped with a multi-speed ECM blower motor, it guarantees maximum efficiency with an impressive SEER2 rating of up to 15.2. Plus, its all-aluminum tubes and fins ensure durability and corrosion resistance. This 60K PRODIRECT™ ECM Air Handler features a factory-sealed cabinet designed for optimal efficiency, achieving a leakage rate of 2% or less at 1.0 inches of water column pressure to effectively maintain conditioned air. Its versatile design allows for multi-position installation and includes easily accessible horizontal and vertical condensate drain pans. Maintenance is a breeze, thanks to slide-out blower and coil components that simplify service. Additionally, you can customize your heating capacity with optional field-installed heat kits available in 5 to 20 kW options. With certifications from AHRI and ETL, the 5 Ton PRODIRECT™ Series ECM Air Handler stands at the forefront of industry standards for quality and performance. It comes with a standard 5-year warranty, plus an additional 5-year extended parts and compressor warranty upon registration. Trust in MRCOOL® to back your investment with reliable support, ensuring you enjoy unparalleled comfort for years to come.

Feature List:

  • Multiposition installation
  • Blower and coil easy slide out for ease of maintenance
  • Optional heat kits available
  • AHRI Listed & ETL Certified
